?Detailed Product Description

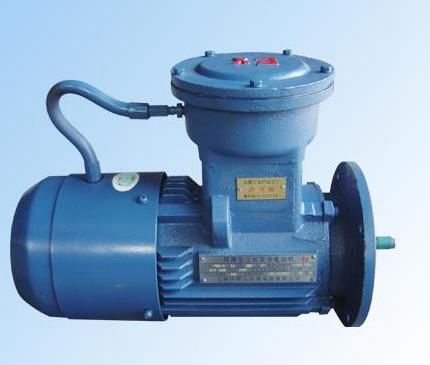

YBEJ series Flame Proof Explosion Proof Motor Frequency Converter Motor


Product Feature:

? Electromagnetic Brake
? Accurate orientation,
? Simple structure
? Convenient operation and
? Easy maintenance


Brief Introduction:

YBEJ Series of Explosion-proof Electromagnetic Brake Three-phase Induction Motors are suitable for the factory with working places full of explosive gas mixtures. Such series of flame-proof electromagnetic Brake Three-phase Induction Motors are totally closed three-phase induction motors with self cooling fan, mouse cage as well as attached disk for friction of dry electricity loss. It enjoys the features of quick brake, accurate orientation, simple structure, convenient operation and easy maintenance, which can be widely used in various machineries requiring instant stop, accurate position and slide prevention on reciprocation. YBEJ Series of Electromagnetic Brake Three-phase Induction Motors can be applied in the factory without working places full of explosive gas mixtures. YBEJ Series of Explosion-proof Electromagnetic Brake Three-phase Induction Motors and YB2 Series of motors have the same installation size.

The explosion-proof performance of YBEJ series of Flame-proof Electromagnetic Brake Three-phase Induction Motors reaches the standards of GB3836.1-2000 Electric Equipment for using in the Explosive Gas Environment part 1: Currency Need and GB3836.2-2000 Electric Equipment for using in the Explosive Gas Environment part 2: Flame-proof “d” to form the flame-proof types of ExdIIBT4.


Main Technical Parameter:

Rated Voltage
380V etc
Rated Frequency
50/60Hz
Protection Level
IP55
Cooling Method
IC411
Working System
S1
Insulation Grade
F
Explosion Grade
ExdIIBT4/ ExdIICT4
Installation Type
IMB3,IMB5,IMB35 etc
